Yokohama Inflatable Fender Integral Winding Technology
Common dimensions and properties of Yokohama inflatable fender
|
SIZE |
Initial pressure is 80 kPa Compression deformation 60% |
||
|
Diameter（mm） |
Length (mm) |
Reactionforce-kn |
Energyabsorb kn-m |
|
500 |
1000 |
87 |
9 |
|
600 |
1000 |
100 |
10 |
|
700 |
1500 |
182 |
28 |
|
1000 |
1500 |
241 |
40 |
|
1000 |
2000 |
340 |
54 |
|
1200 |
2000 |
392 |
69 |
|
1350 |
2500 |
563 |
100 |
|
1500 |
3000 |
763 |
174 |
|
1700 |
3000 |
842 |
192 |
|
2000 |
3500 |
1152 |
334 |
|
2000 |
4000 |
1591 |
386 |
|
2500 |
4000 |
1817 |
700 |
|
2500 |
5500 |
2655 |
882 |
|
3000 |
5000 |
2715 |
1080 |
|
3000 |
6000 |
3107 |
1311 |
|
3300 |
4500 |
2478 |
1642 |
|
3300 |
6000 |
3654 |
2340 |
|
3300 |
6500 |
3963 |
2534 |
The company has long been committed to pneumatic fender to yokohama, pneumatic fender, pneumatic rubber fender, inflatable rubber fender, Marine pneumatic fender, foam filling fender, product research and development, production and sales of ship launching airbag, using natural rubber and styrene butadiene rubber, polybutadience rubber, such as synthetic rubber, rubber hard, more abrasion resistance and toughness, product use high quality materials and special explosion-proof technology, sightseeing along the outside, good wear resistance, aging resistance, air tightness, high intensity, long service life, high quality, and through the ISO17357 and ISO9001: 2008 international quality management system certification and CCS, ABS, BV, DNV, GL, LR and other product quality certification, and for the national large construction enterprises and wharf protection to provide products and services.
Pneumatic rubber fender is also called yokohama fender, inflatable rubber fender, Marine fender, yokohama pneumatic fender, pneumatic rubber fender

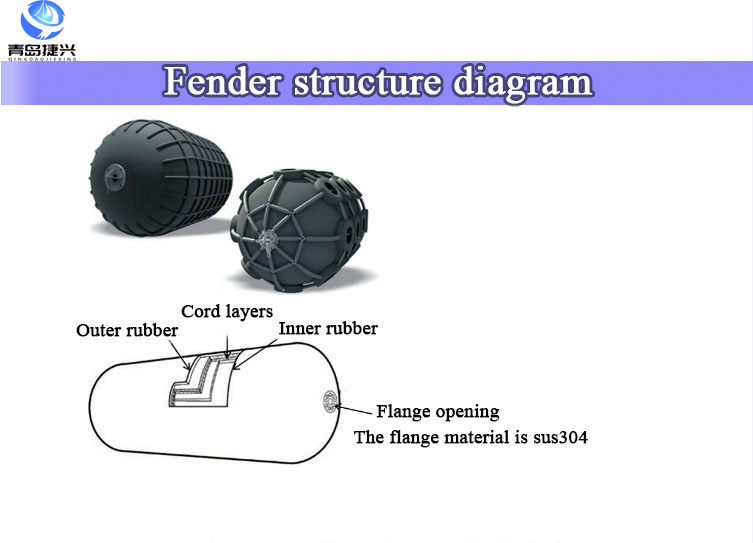

Yokohama fenders structure diagram
Pneumatic rubber fender, yokohama pneumatic fender features
1. Large energy absorption, small reaction force, so as to ensure that neither damage the hull nor damage the shore wall.
2. Simple installation, portable, in any ship, any sea area is not affected by the tide and the size of the ship.
3. Good resilience, the product will not be deformed due to the force after the force is exerted. After the fender is squeezed, more than 95% of the product will be released immediately after the force.
4. Good economic performance, pneumatic fender compared with the same period, Beierte fender economic performance is good, cost-effective, reliable quality. Qingdao Jiexing Fender has undergone inspection from raw material purchasing, product ordering, product production and product inspection to ensure its quality.

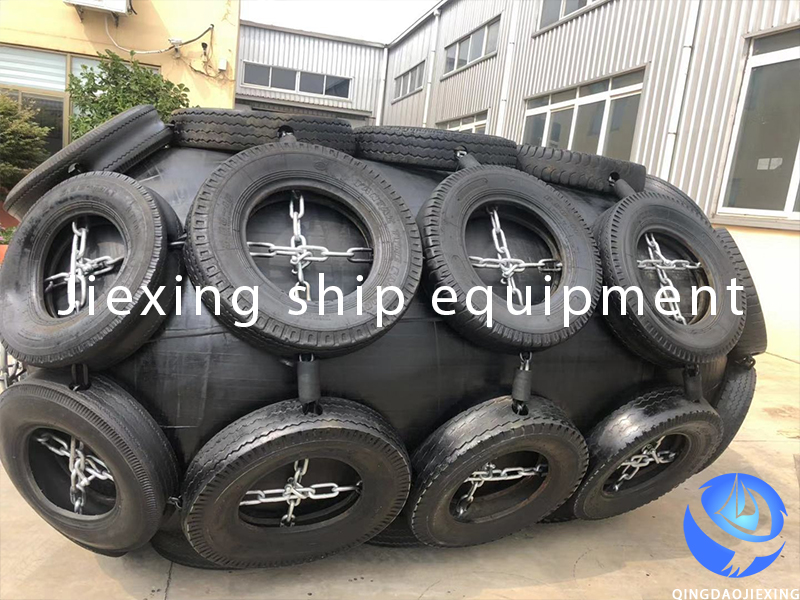

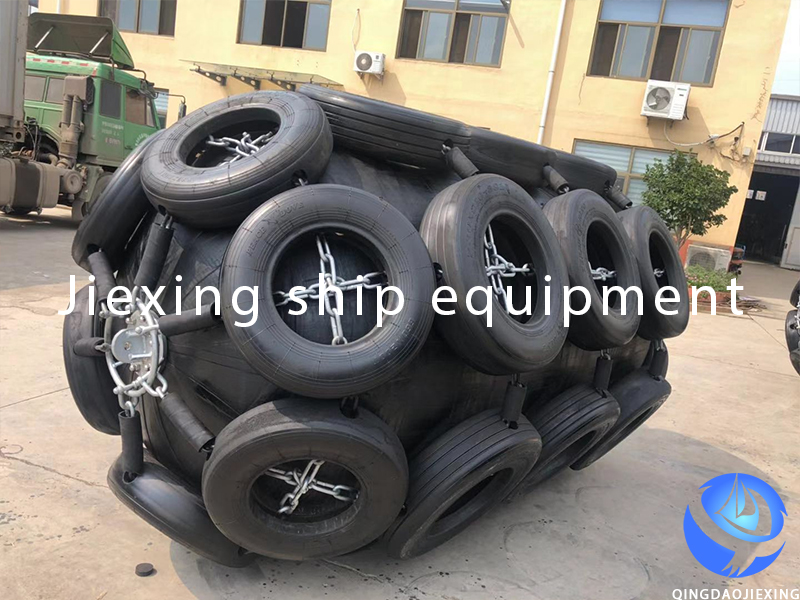

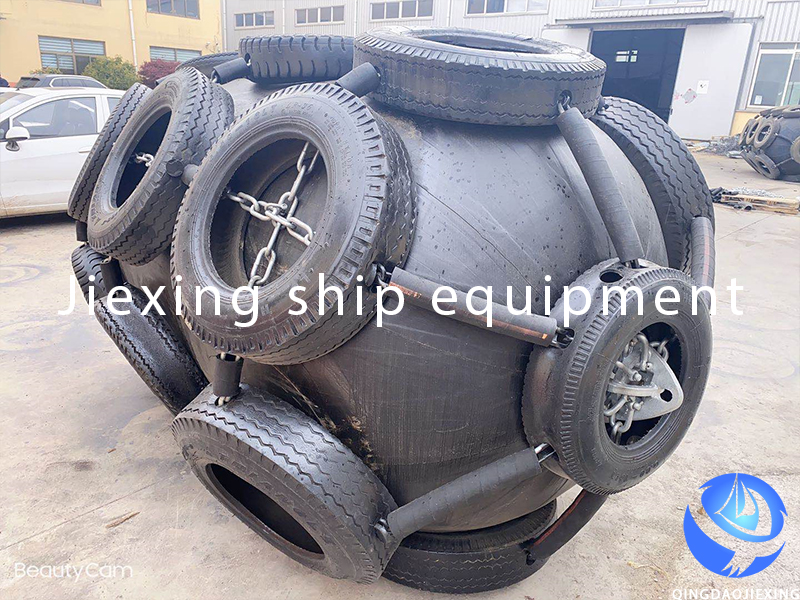

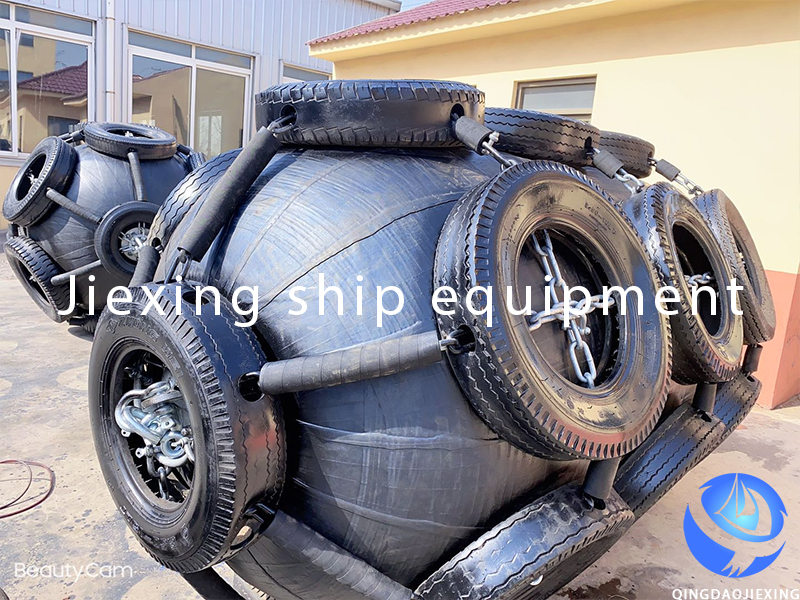

Yokohama fender case display
