The Marine Buoy Has Complete Specifications and Stable Performance
Foam filled fender component
Polyurethane elastomer, EVA foaming, steel pipe and flange four parts.
Foam filled fender best features
1. Our product features superior buoyancy, remaining unaffected by changing tides.
2. We offer a wide selection of vibrant color options to customize based on our customers' preferences.
3. Compared with the inflatable fender, the use process does not need to add gas, not afraid of scratching, not afraid of puncture, not afraid of friction, sea water resistance, acid and alkali resistance; The service life is as long as 25--30 years, with safety and maintenance free sex.
4. Although it is a solid core, but the weight is very light, convenient installation and mobile flexible.
5. When the compression deformation is 60%, the reaction force is obvious from small to large, and the energy absorption is very high.
Common dimensions and properties of foam-filled fenders
|
SIZE |
Compression deformation 60% |
||
|
Diameter（mm） |
Length (mm) |
Reactionforce-kn |
Energyabsorb kn-m |
|
300 |
500 |
38 |
1.8 |
|
400 |
800 |
56 |
2.6 |
|
500 |
1000 |
71 |
3.8 |
|
600 |
1000 |
95 |
5 |
|
700 |
1500 |
150 |
24.5 |
|
1000 |
1500 |
205 |
49 |
|
1000 |
2000 |
274 |
64 |
|
1200 |
2000 |
337 |
93 |
|
1200 |
2400 |
405 |
129 |
|
1350 |
2500 |
514 |
172 |
|
1500 |
3000 |
624 |
216 |
|
1700 |
3000 |
807 |
260 |
|
2000 |
3500 |
990 |
456 |
|
2000 |
4000 |
1163 |
652 |
|
2500 |
4000 |
1472 |
1044 |
|
2500 |
5000 |
1609 |
1228 |
|
3000 |
5000 |
2050 |
1412 |
|
3000 |
6000 |
2460 |
1695 |
|
3300 |
6500 |
2665 |
1836 |

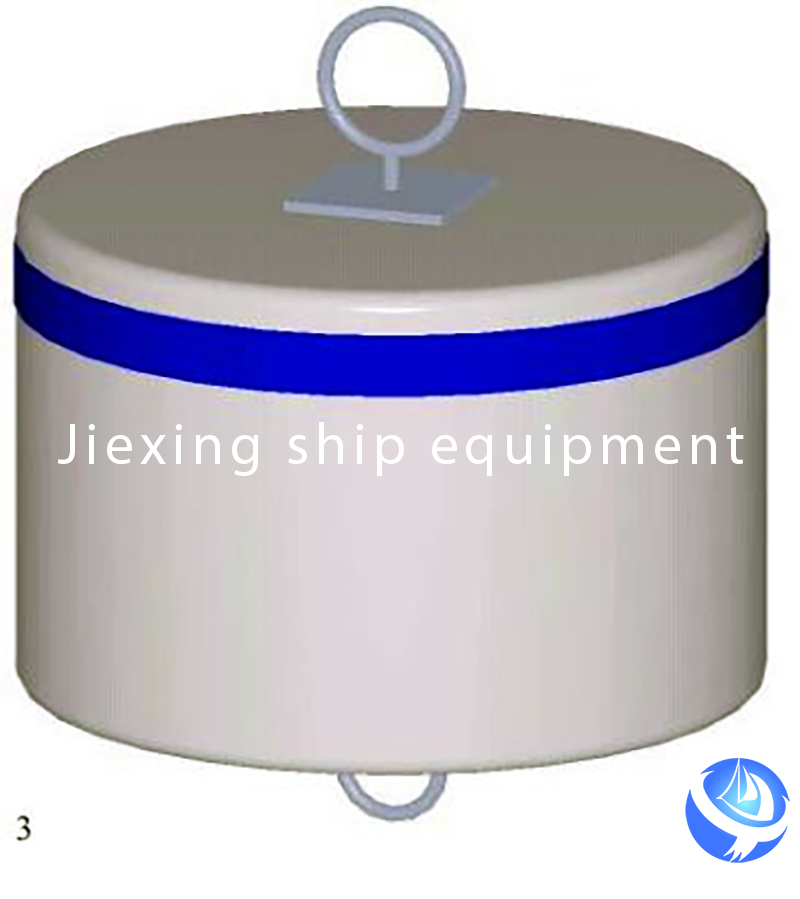

Schematic diagram of foam-filled fender structure

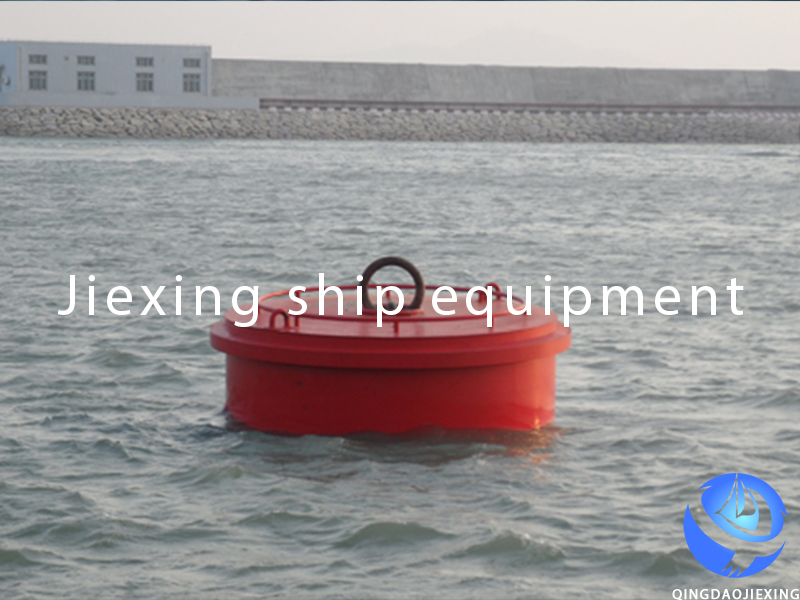

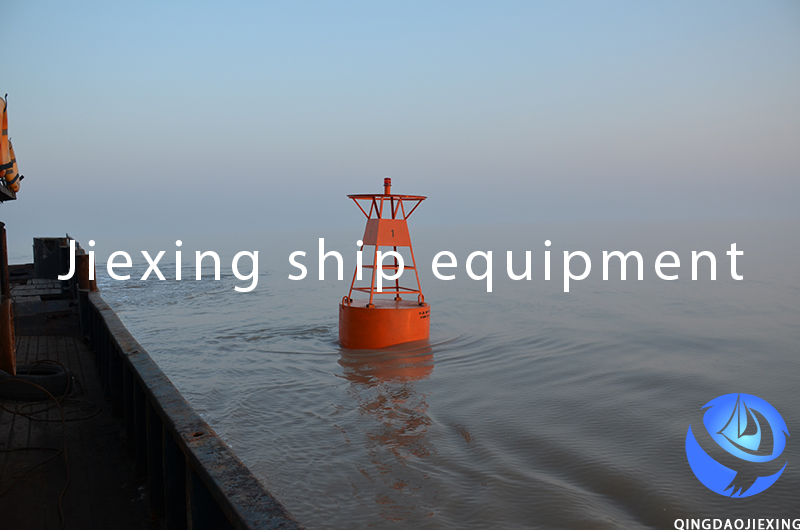

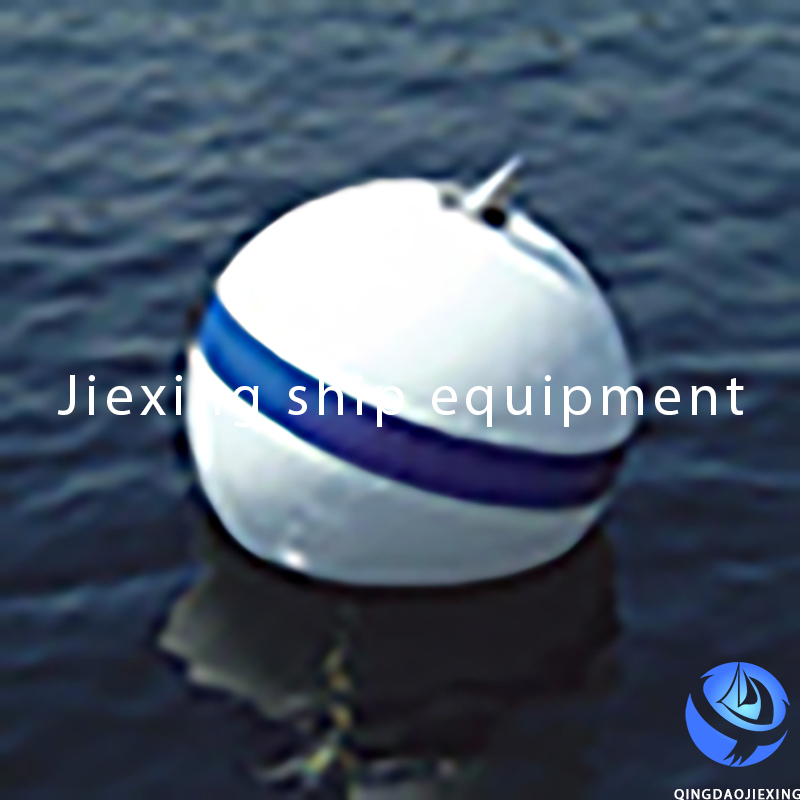

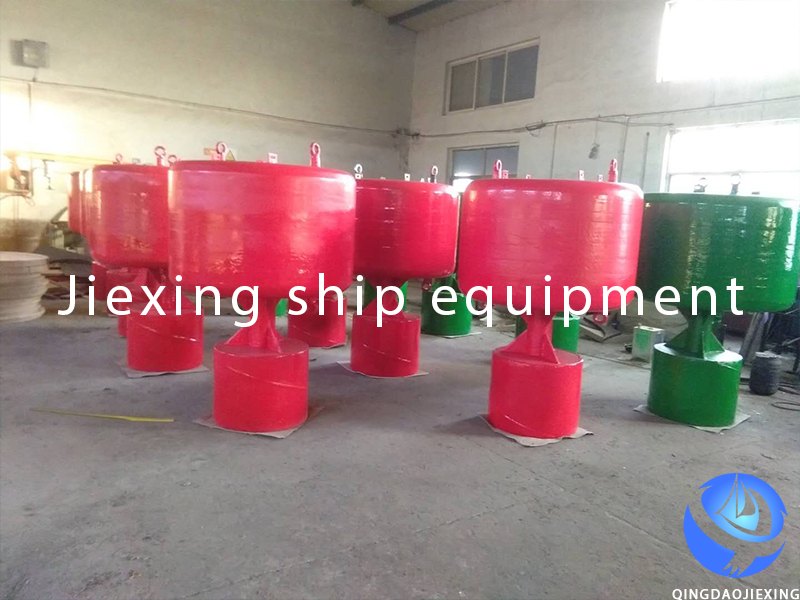

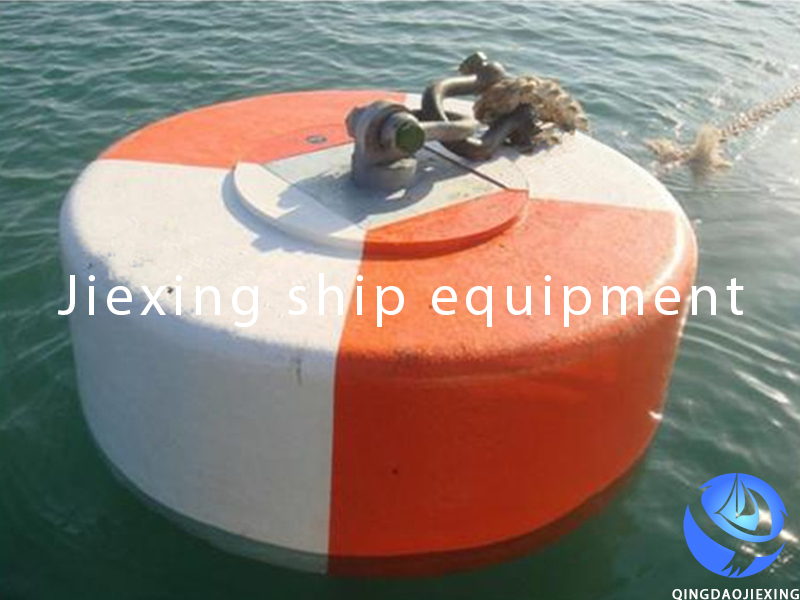

Foam filled fender case display
