Rubber Airbag High Strength Safe and Reliable

Short Description:

Marine airbag preparation before use

1. Clear and clean the sharp objects such as iron on the berth to avoid scratching the Marine airbag and causing unnecessary losses.

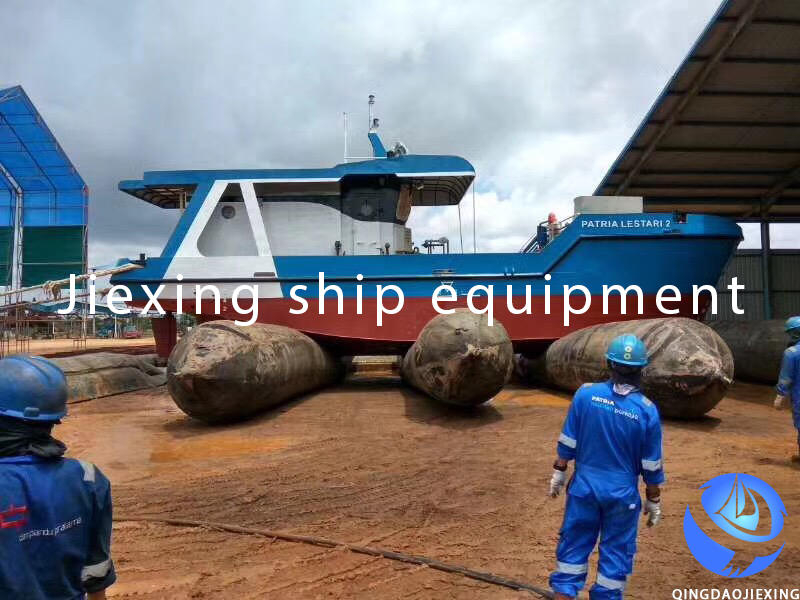

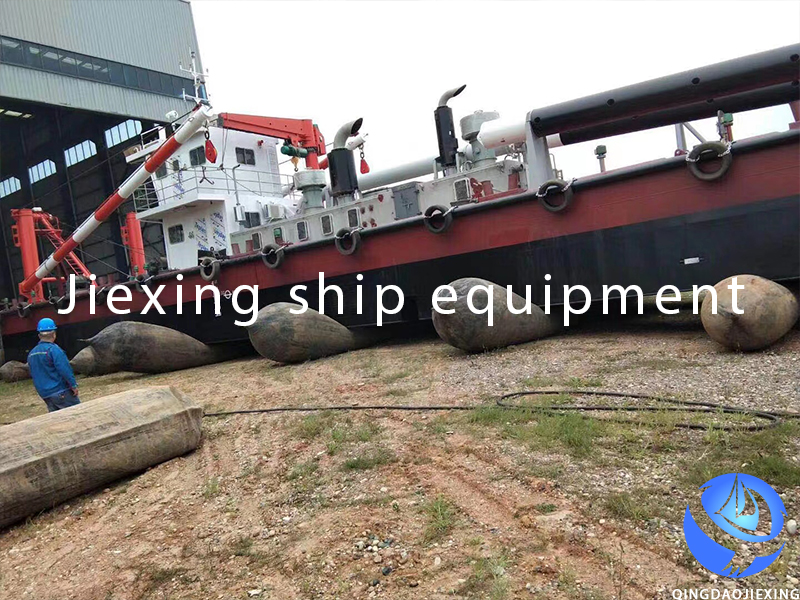

2. Place the Marine airbags at the bottom of the ship at a predetermined distance and inflate it. Obact the rising state of the ship and the pressure of the air bag at any time.

3. After inflating all Marine airbags, check the state of the air bags again, check whether the ship is balanced, and check whether the berth is clean and tidy.

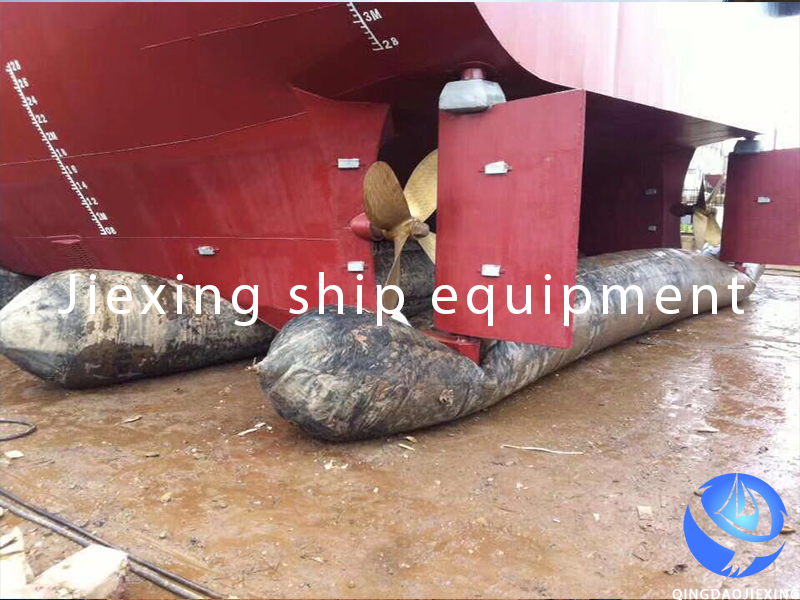

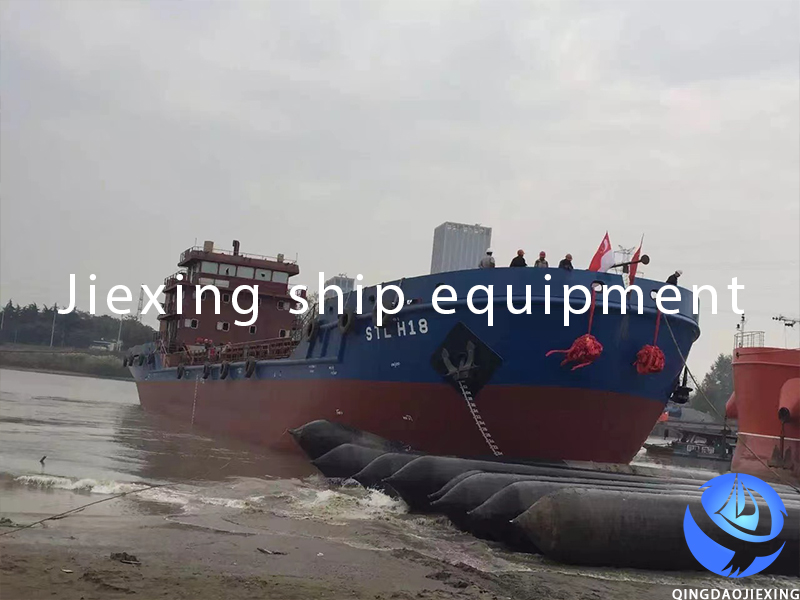

4. The most important thing for the ship to use the air bag to launch is the stern first, and the stern first introduces the water surface; If it had gone the other way, the propeller at the back of the boat would have scraped the air bag, causing a safety accident.

Send email to us

Product Detail

Product Tags

Application field of Marine upper drainage airbag

1. The ship building industry and the ship repair industry are mainly to launch the ship safely in the ship building industry, and to shore the ship safely for repair in the ship repair industry.
2. It is used in the construction industry to carry super large building structures. Such as the weight of more than 10,000 tons of piers, wharf caisson and other large reinforced concrete structures on the slope of displacement, salvage sunken ships, stranded rescue and so on.
Compared with the traditional skateboard and slide craft, it has the characteristics of labor-saving, time-saving, labor-saving, less investment, flexible mobility, safety and reliability. It is suitable for all types of ships and construction.

Ship launching air bag is divided into: low pressure Airbag, medium pressure Airbag, high pressure Aairbag.

Marine airbags performance

Diameter	Layer	Working pressure	Working height	Guaranteed bearing capacity per unit length(T/M）
D=1.0m	6-8	0.18MPa-0.22MPa	0.5m-0.8m	≥13.7
D=1.2m	6-8	0.17MPa-0.2MPa	0.6m-1.0m	≥16.34
D=1.5m	6-8	0.16Mpa-0.18MPa	0.7m-1.2m	≥18
D=1.8m	6-10	0.15MPa-0.18MPa	0.7m-1.5m	≥20
D=2.0m	8-12	0.17MPa-0.2MPa	0.9m-1.7m	≥21.6
D=2.5m	8-12	0.16MPa-0.19MPa	1.0m-2.0m	≥23

Dimensions and specifications of Marine airbags

Size	Diameter	1.0m，1.2m，1.5m，1.8m，2.0m，2.5m，2.8m，3.0m
	Effective Length	8m, 10m，12m，15m，16m, 18m，20m，22m，24m,Etc.
Layer	4layer，5layer，6layer，8layer，10layer，12layer
Remark:	According to different launching requirements, different ship types and different ship weights, the slope ratio of berth is different, and the size of Marine airbag is different. If there are special requirements, can be customized.
