Pneumatic Rubber Fender Yokohama Fender Extra Long Warranty

Short Description:

Pneumatic rubber fender features

Yokohama pneumatic fender, inflatable rubber fender, pneumatic rubber fender, Marine fender is popular in today’s international ship fender products, using compressed air as buffer medium, make the ship when it is on the list has more soft wall effect, has big impact energy absorption, covers an area of low pressure acting on the ship, high impact fatigue performance, easy to install, etc; Widely used in large oil tanker, liquefied gas ship, chemical ship, offshore platform, large dock, sea, etc.; Qqingdao Jiexing ship fender products are reliable.


Product Detail

Product Tags

Pneumatic rubber fender Yokohama Fender common size, performance

SIZE

Initial pressure is 80 kPa

Compression deformation 60%

Diameter(mm)

Length (mm)

Reactionforce-kn

Energyabsorb kn-m

500

1000

87

9

600

1000

100

10

700

1500

182

28

1000

1500

241

40

1000

2000

340

54

1200

2000

392

69

1350

2500

563

100

1500

3000

763

174

1700

3000

842

192

2000

3500

1152

334

2000

4000

1591

386

2500

4000

1817

700

2500

5500

2655

882

3000

5000

2715

1080

3000

6000

3107

1311

3300

4500

2478

1642

3300

6000

3654

2340

3300

6500

3963

2534

Inflatable rubber fender is a new type of winding fender, abrasion resistance, scratch resistance, resistance to ageing, stung, etc, the appearance of the most prominent feature is the surface of the pneumatic rubber fender ontology by a tire chain net type sheathed packages, protect the fender of ontology is stung by sharp objects, scratches, drop and so on, which is a fender ontology use fixed number of year.

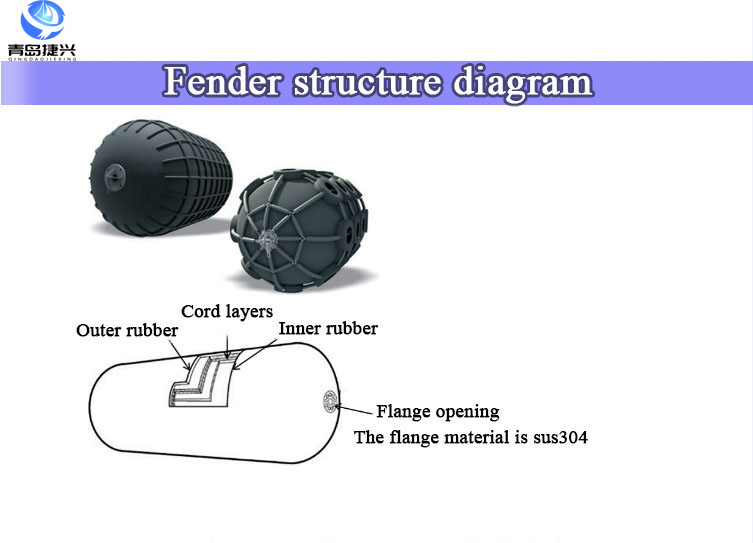

Schematic diagram of pneumatic rubber fender structure

product-description1

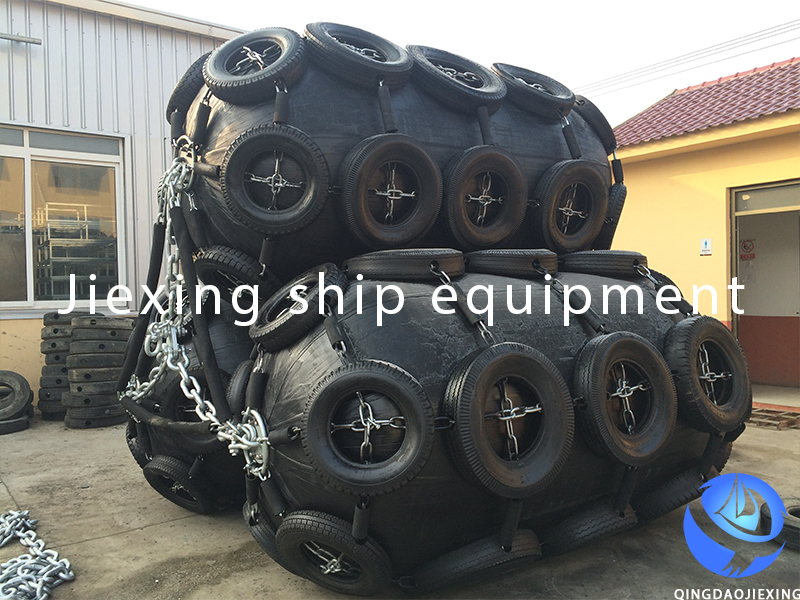

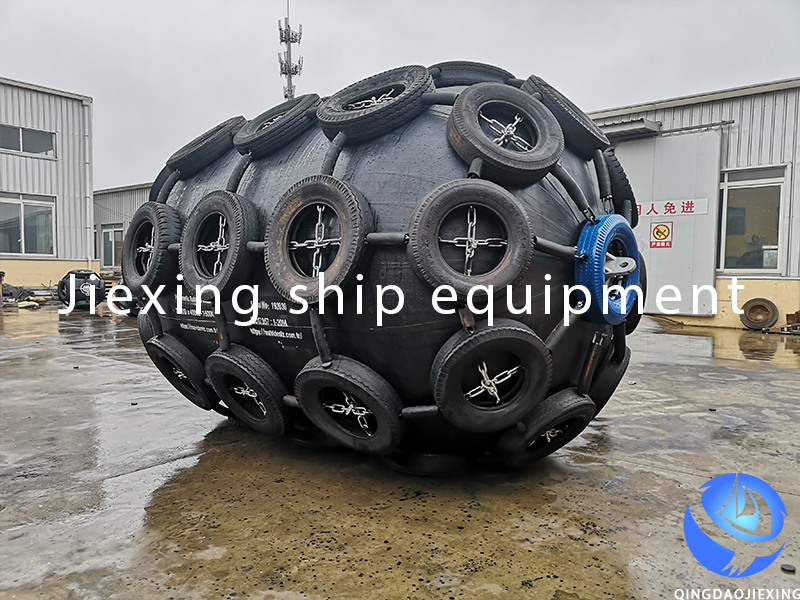

Case demonstration of pneumatic rubber fender

pneumatic-rubber-fender-(1)
pneumatic-rubber-fender-(2)
pneumatic-rubber-fender-(3)
pneumatic-rubber-fender-(4)

Product Advantage

Introducing the Yokohama Pneumatic Rubber Fender - a top-of-the-line, high-pressure fender built to withstand even the toughest of conditions. With its extra-long warranty, you can rest assured that this fender will provide reliable protection for years to come. Our expert engineering and cutting-edge design ensure that you receive unbeatable performance and maximum safety for your vessel. Don't settle for anything less than the best - choose the Yokohama Pneumatic Rubber Fender for ultimate peace of mind on the water.
