Pneumatic Fender Performance is Safe and Reliable

Short Description:

Pneumatic ship fender structure:

1. Pneumatic ship fender is divided into: inner rubber layer, reinforced cord layer, outer rubber layer.

2. Function of inner adhesive layer: shape for fender, enhance air tightness and ensure no air leakage.

3. Enhance connection layer: improve the strength of the transverse fender, increase the tensile strength, increase the pressure.

4. Outer layer: improve the wear resistance of Marine fender, better protect the inflatable rubber fender body, prolong the service life

Small portable pneumatic rubber fender is suitable for small fishing boats, engineering ships, oil tankers, coast guard ships, floating docks, etc


Product Detail

Product Tags

Pneumatic fender common size, performance

SIZE

Initial pressure is 80 kPa

Compression deformation 60%

Diameter(mm)

Length (mm)

Reactionforce-kn

Energyabsorb kn-m

500

1000

87

9

600

1000

100

10

700

1500

182

28

1000

1500

241

40

1000

2000

340

54

1200

2000

392

69

1350

2500

563

100

1500

3000

763

174

1700

3000

842

192

2000

3500

1152

334

2000

4000

1591

386

2500

4000

1817

700

2500

5500

2655

882

3000

5000

2715

1080

3000

6000

3107

1311

3300

4500

2478

1642

3300

6000

3654

2340

3300

6500

3963

2534

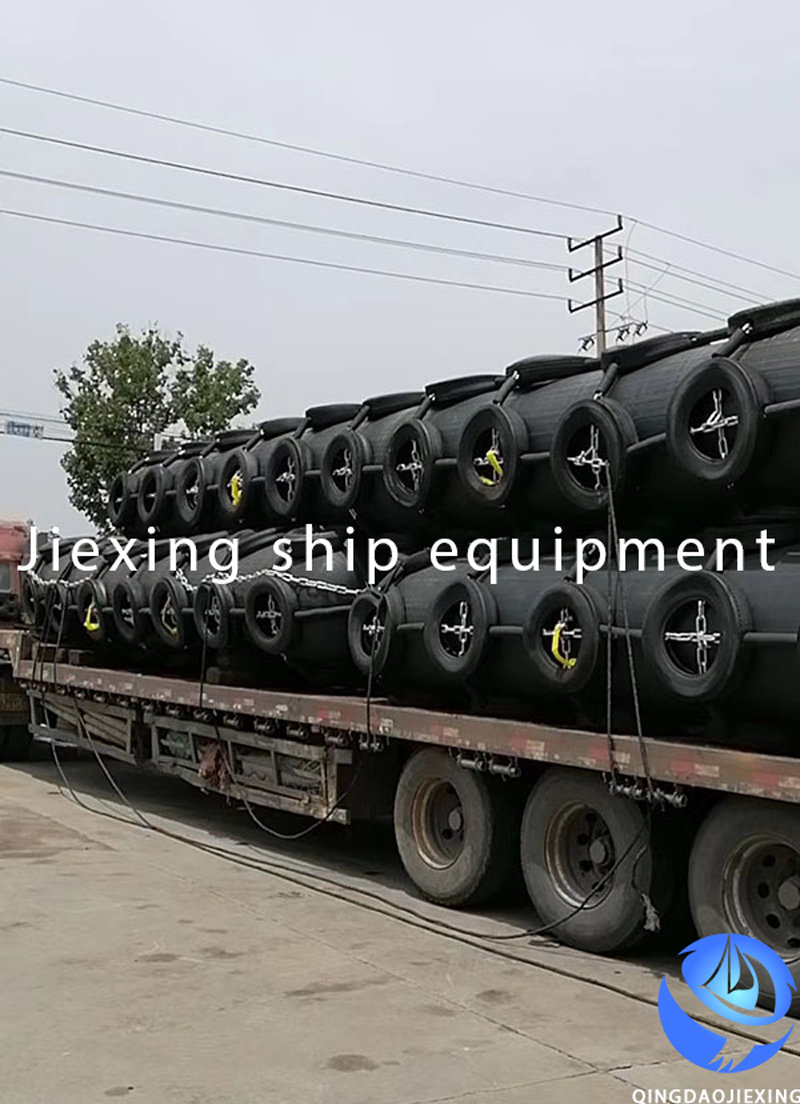

Pneumatic fender mode of transportation

Large yokohama pneumatic fender often encounter the problem of over-wide and over-high containers being unable to be shipped during transportation. In fact, we can release the gas on the ship's fender and then fold it, so that neither the container nor the trailer will refuse to ship or increase the high transportation cost due to the over-wide and over-high. But the ship pneumatic fender deflating manufacturers are also to experience, can not blindly deflating.

Schematic diagram of pneumatic fender structure

product-description1

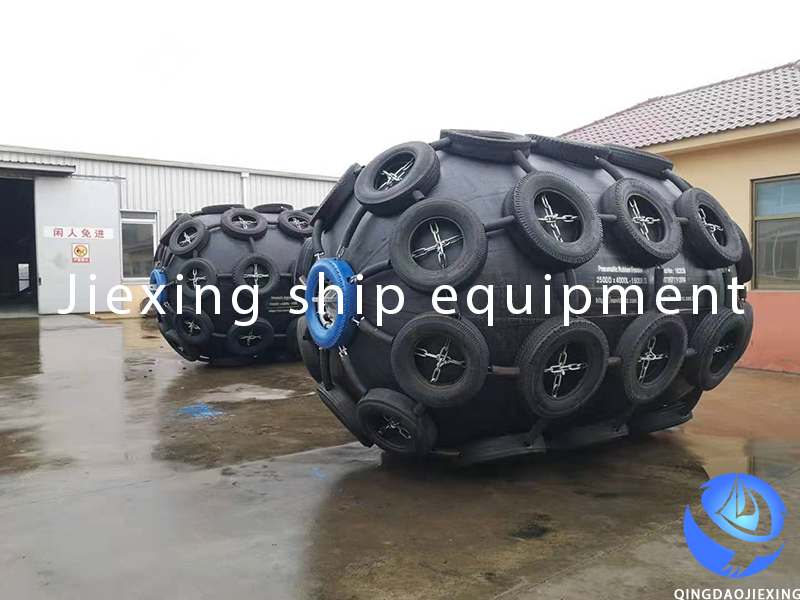

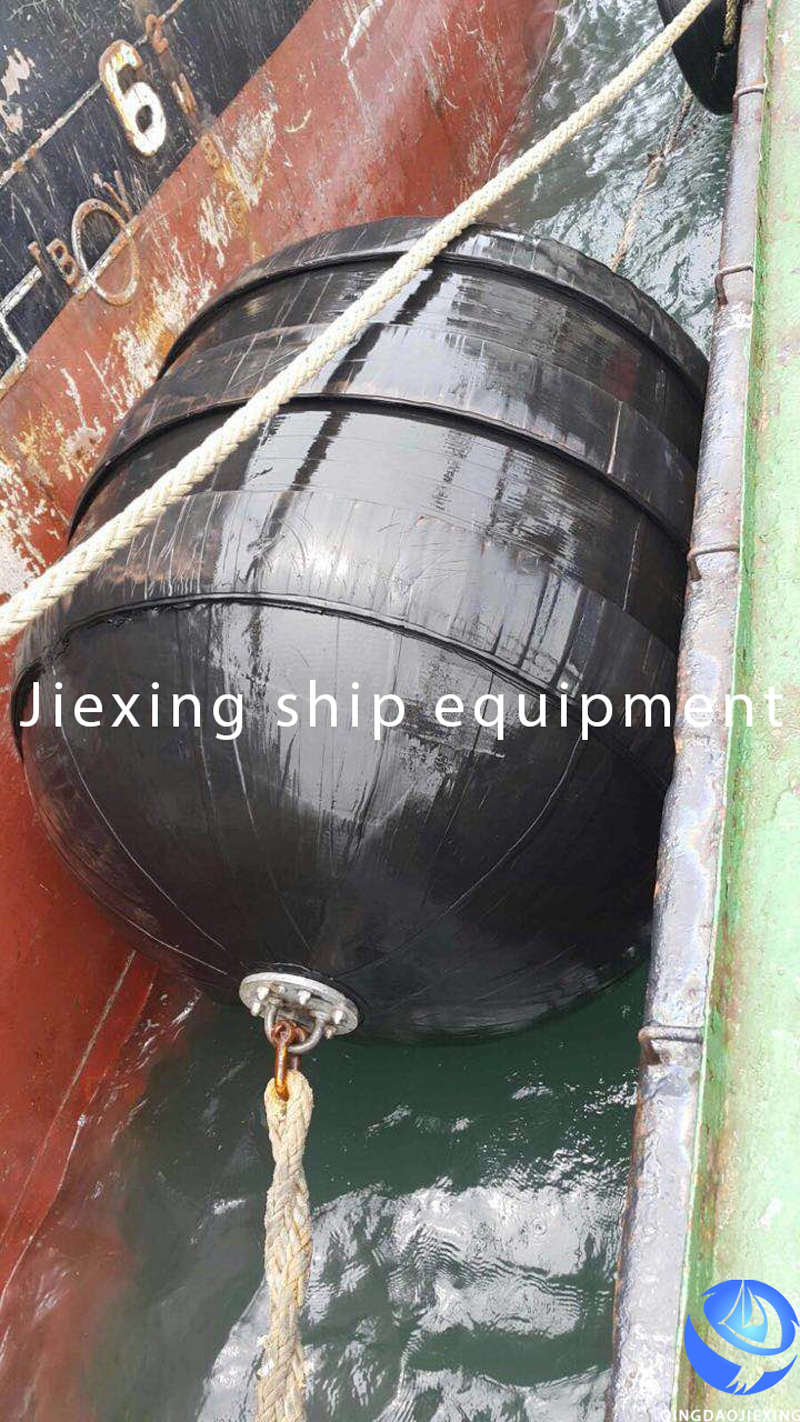

Case demonstration of pneumatic fender

Pneumatic-fender-(1)
Pneumatic-fender-(2)
Pneumatic-fender-(3)
Pneumatic-fender-(4)

Product Advantage

Introducing the Pneumatic Fender - built with the highest quality materials and designed for superior performance, safety, and reliability. Whether for offshore platforms or ship-to-ship operations, our fender offers unbeatable protection against collision damage and harsh weather conditions. Trust in our years of experience and cutting-edge technology, and enjoy the peace of mind that comes with a reliable, high-quality fender.
