SIZE |
Initial pressure is 80 kPa Compression deformation 60% |
||
Diameter(mm) |
Length (mm) |
Reactionforce-kn |
Energyabsorb kn-m |
500 |
1000 |
87 |
9 |
600 |
1000 |
100 |
10 |
700 |
1500 |
182 |
28 |
1000 |
1500 |
241 |
40 |
1000 |
2000 |
340 |
54 |
1200 |
2000 |
392 |
69 |
1350 |
2500 |
563 |
100 |
1500 |
3000 |
763 |
174 |
1700 |
3000 |
842 |
192 |
2000 |
3500 |
1152 |
334 |
2000 |
4000 |
1591 |
386 |
2500 |
4000 |
1817 |
700 |
2500 |
5500 |
2655 |
882 |
3000 |
5000 |
2715 |
1080 |
3000 |
6000 |
3107 |
1311 |
3300 |
4500 |
2478 |
1642 |
3300 |
6000 |
3654 |
2340 |
3300 |
6500 |
3963 |
2534 |

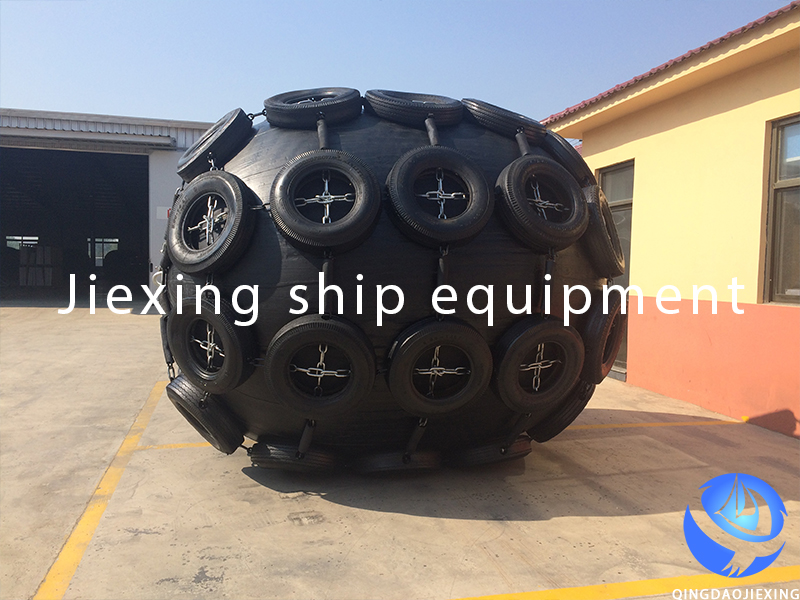

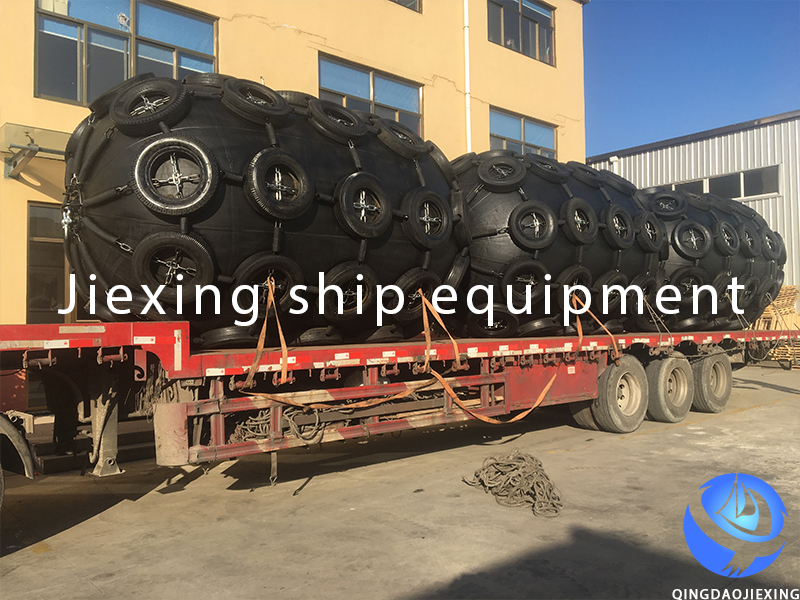

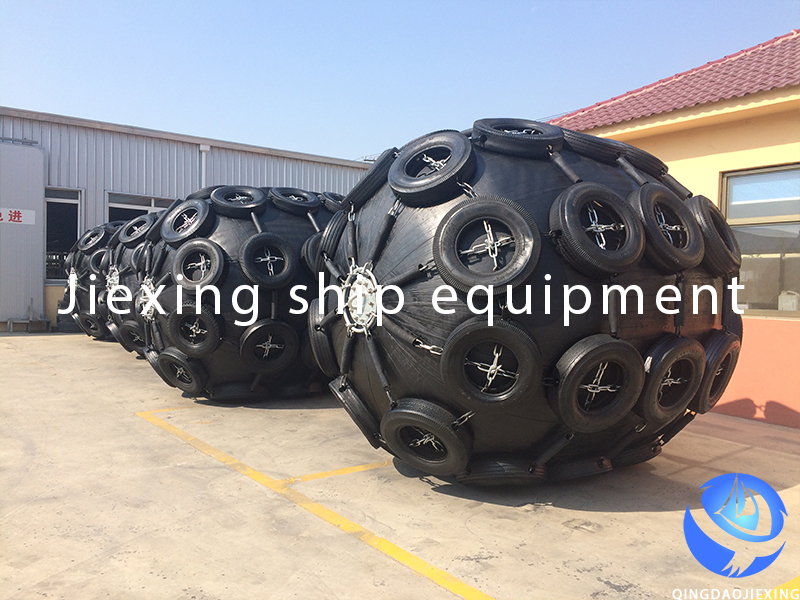

Pneumatic rubber fender, yokohama fender mainly using compressed air as medium, can float on the sea, to absorb the impact energy of the vessel, the two ship or ship wharf building dock, such as dock between smooth, safe, in order to achieve crash-proof collision avoidance effect, which is widely used in ship to ship transfers between dock in assignments, etc.
1. Large energy absorption, small reaction force, so as to ensure that neither damage the hull nor damage the shore wall.
2. Simple installation, portable, in any ship, any sea area is not affected by the tide and the size of the ship.
3. Good resilience, the product will not be deformed due to the force after the force is exerted. After the fender is squeezed, more than 95% of the product will be released immediately after the force.
4. Good economic performance, pneumatic fender compared with the same period, Beierte fender economic performance is good, cost-effective, reliable quality. Qingdao Jiexing Fender has undergone inspection from raw material purchasing, product ordering, product production and product inspection to ensure its quality.
