Large Marine Rubber Airbag Use Mission Long

Short Description:

Advantages of Marine airbags

1. The construction of the Save a lot of money Using ship airbags on the way, the water launching is a promising new technology, changing the repaired the ship can only adopt slipway, floating dock, the dock water way, thereby saving the chute, dock, the dock into the constructed a lot of money, and thus reduce the upfront costs of the construction yard.

2. Greatly improve the ability of shipyard built Because the traditional way of fluctuation restricted the shipyard’s production capacity, use of Marine airbags flexible fluctuation radically changed only use slipway, dock in the work of the traditional way of the ground can be used in the work of then use airbag launching way, so that it can greatly improve the repaired the ability of shipyard.

Send email to us

Product Detail

Product Tags

Application field of Marine upper drainage airbag

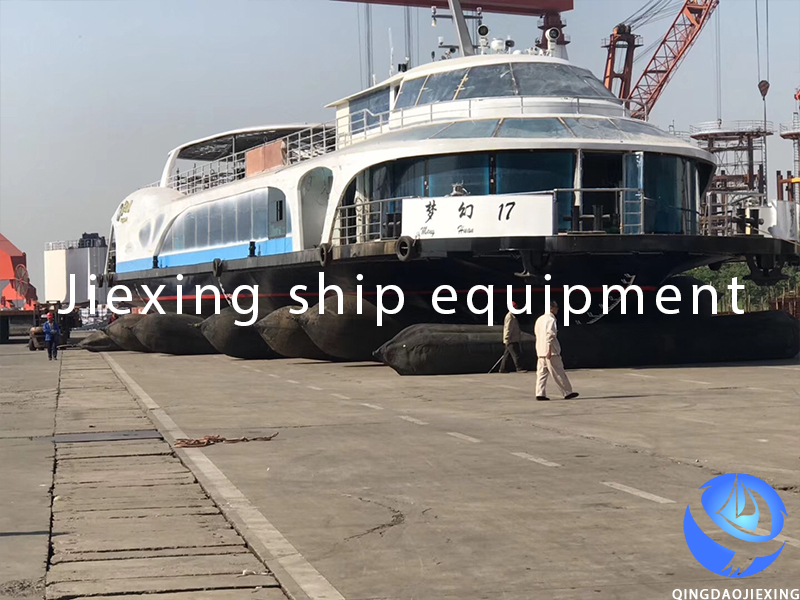

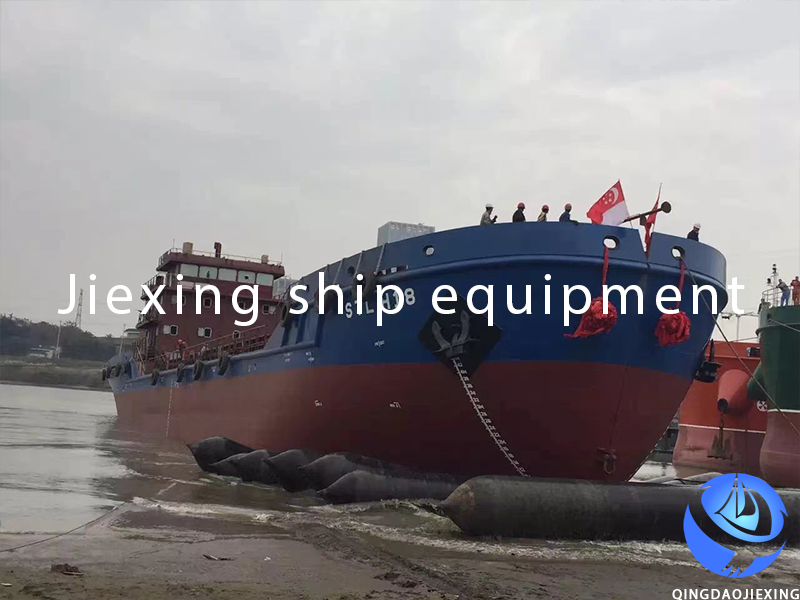

1. The ship building industry and the ship repair industry are mainly to launch the ship safely in the ship building industry, and to shore the ship safely for repair in the ship repair industry.
2. It is used in the construction industry to carry super large building structures. Such as the weight of more than 10,000 tons of piers, wharf caisson and other large reinforced concrete structures on the slope of displacement, salvage sunken ships, stranded rescue and so on.
Compared with the traditional skateboard and slide craft, it has the characteristics of labor-saving, time-saving, labor-saving, less investment, flexible mobility, safety and reliability. It is suitable for all types of ships and construction.

Ship launching air bag is divided into: low pressure Airbag, medium pressure Airbag, high pressure Aairbag.

Marine airbags performance

Diameter	Layer	Working pressure	Working height	Guaranteed bearing capacity per unit length(T/M）
D=1.0m	6-8	0.18MPa-0.22MPa	0.5m-0.8m	≥13.7
D=1.2m	6-8	0.17MPa-0.2MPa	0.6m-1.0m	≥16.34
D=1.5m	6-8	0.16Mpa-0.18MPa	0.7m-1.2m	≥18
D=1.8m	6-10	0.15MPa-0.18MPa	0.7m-1.5m	≥20
D=2.0m	8-12	0.17MPa-0.2MPa	0.9m-1.7m	≥21.6
D=2.5m	8-12	0.16MPa-0.19MPa	1.0m-2.0m	≥23

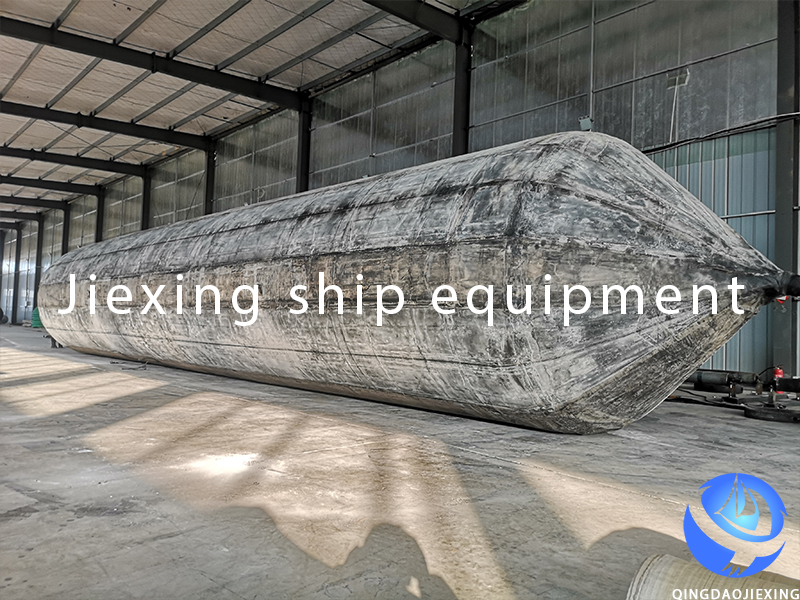

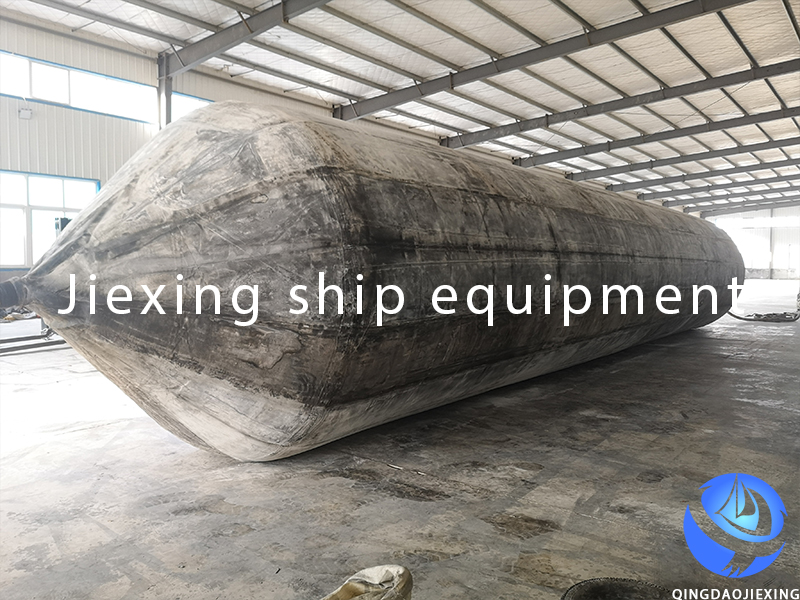

Dimensions and specifications of Marine airbags

Size	Diameter	1.0m，1.2m，1.5m，1.8m，2.0m，2.5m，2.8m，3.0m
	Effective Length	8m, 10m，12m，15m，16m, 18m，20m，22m，24m,Etc.
Layer	4layer，5layer，6layer，8layer，10layer，12layer
Remark:	According to different launching requirements, different ship types and different ship weights, the slope ratio of berth is different, and the size of Marine airbag is different. If there are special requirements, can be customized.
