High Strength Yokohama Pneumatic Floating Fender

Short Description:

Product Detail

Product Tags

Common dimensions and properties of Yokohama Marine pneumatic fender

SIZE		Initial pressure is 80 kPa Compression deformation 60%
Diameter（mm）	Length (mm)	Reactionforce-kn	Energyabsorb kn-m
500	1000	87	9
600	1000	100	10
700	1500	182	28
1000	1500	241	40
1000	2000	340	54
1200	2000	392	69
1350	2500	563	100
1500	3000	763	174
1700	3000	842	192
2000	3500	1152	334
2000	4000	1591	386
2500	4000	1817	700
2500	5500	2655	882
3000	5000	2715	1080
3000	6000	3107	1311
3300	4500	2478	1642
3300	6000	3654	2340
3300	6500	3963	2534

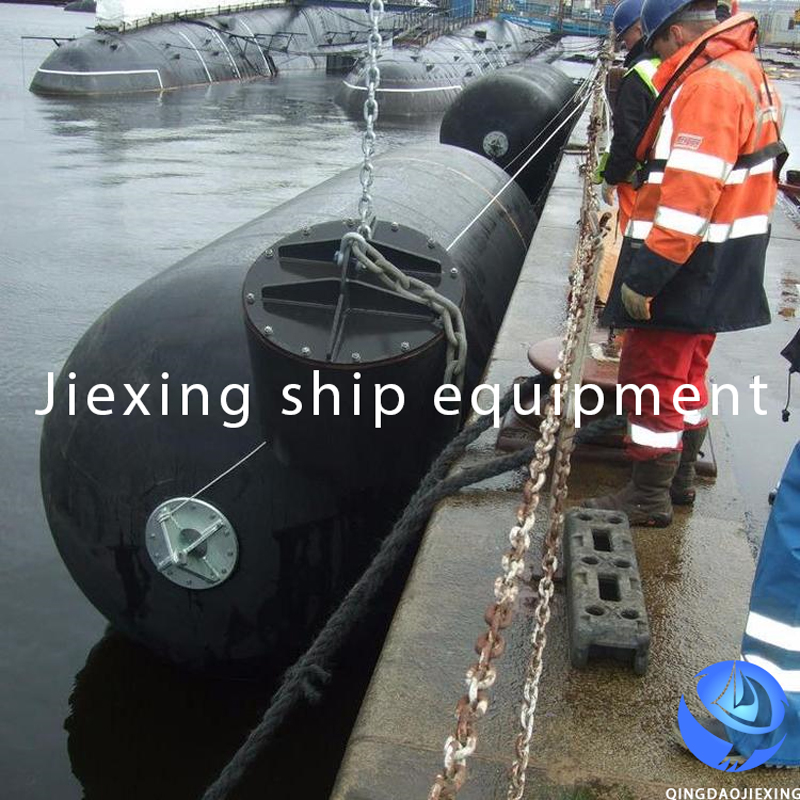

When the ship is docked, the inflatable rubber fender can exert its performance to achieve inclined contact and increase the safety factor. Inflatable rubber fender is widely used in wharf, dock, oil tanker, cargo ship, offshore platform, warship, military port wharf, buoy, sea handling cargo, sea pipeline plugging and so on. Products have been CCS, ABS, BV, DNV, GL, LR and other classification society quality inspection certification. Stable quality, perfect after-sales service, reasonable price, let every customer satisfaction.

Pneumatic rubber fender, yokohama pneumatic fender features

1. Large energy absorption, small reaction force, so as to ensure that neither damage the hull nor damage the shore wall.
2. Simple installation, portable, in any ship, any sea area is not affected by the tide and the size of the ship.
3. Good resilience, the product will not be deformed due to the force after the force is exerted. After the fender is squeezed, more than 95% of the product will be released immediately after the force.
4. Good economic performance, pneumatic fender compared with the same period, Beierte fender economic performance is good, cost-effective, reliable quality. Qingdao Jiexing Fender has undergone inspection from raw material purchasing, product ordering, product production and product inspection to ensure its quality.
