80KPa Yokohama Boat Fender Safe
Common dimensions and properties of Yokohama ship fender
|
SIZE |
Initial pressure is 80 kPa Compression deformation 60% |
||
|
Diameter（mm） |
Length (mm) |
Reactionforce-kn |
Energyabsorb kn-m |
|
500 |
1000 |
87 |
9 |
|
600 |
1000 |
100 |
10 |
|
700 |
1500 |
182 |
28 |
|
1000 |
1500 |
241 |
40 |
|
1000 |
2000 |
340 |
54 |
|
1200 |
2000 |
392 |
69 |
|
1350 |
2500 |
563 |
100 |
|
1500 |
3000 |
763 |
174 |
|
1700 |
3000 |
842 |
192 |
|
2000 |
3500 |
1152 |
334 |
|
2000 |
4000 |
1591 |
386 |
|
2500 |
4000 |
1817 |
700 |
|
2500 |
5500 |
2655 |
882 |
|
3000 |
5000 |
2715 |
1080 |
|
3000 |
6000 |
3107 |
1311 |
|
3300 |
4500 |
2478 |
1642 |
|
3300 |
6000 |
3654 |
2340 |
|
3300 |
6500 |
3963 |
2534 |

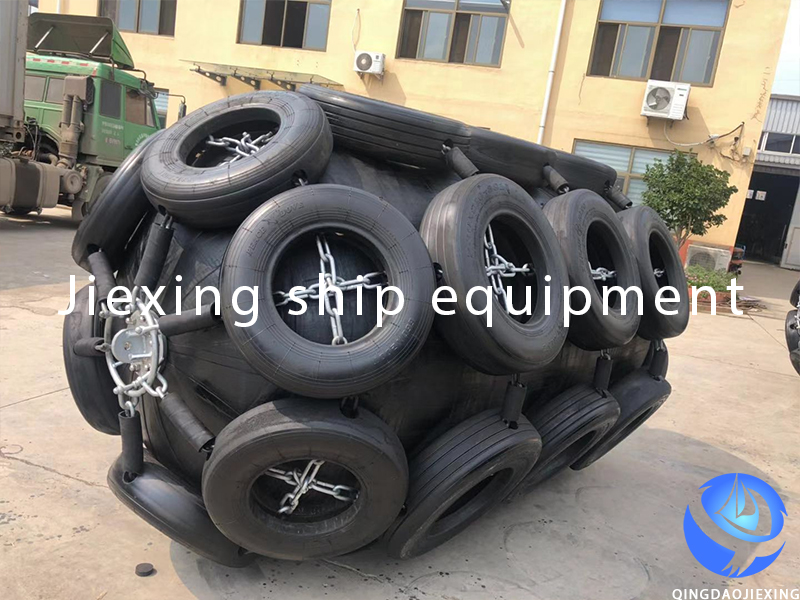

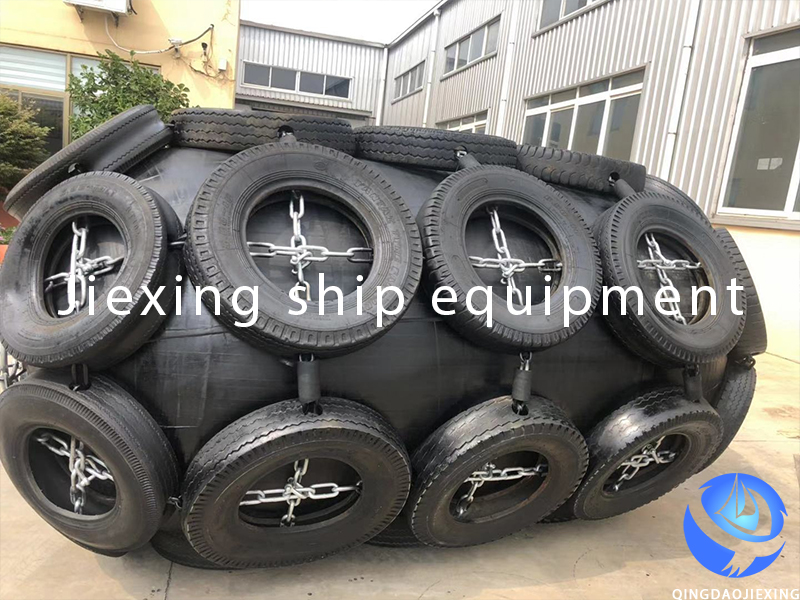

Marine pneumatic fender tyre chain nets are selected as follows
Tire chain network is divided into: ordinary car tires, truck tires, airplane tires; Aircraft tires have the most wear resistance (but the cost is relatively higher), the use of chains, shackles must be hot-dip galvanized; The protective pipe should be covered outside the chain, which is to protect the chain from wearing the fender body and the hull from being damaged.
Yokohama fenders structure diagram
Pneumatic ship fender structure
1. Pneumatic ship fender is divided into: inner rubber layer, reinforced cord layer, outer rubber layer.
2. Function of inner adhesive layer: shape for fender, enhance air tightness and ensure no air leakage.
3. Enhance connection layer: improve the strength of the transverse fender, increase the tensile strength, increase the pressure.
4. Outer layer: improve the wear resistance of Marine fender, better protect the inflatable rubber fender body, prolong the service life.
Small portable pneumatic rubber fender is suitable for small fishing boats, engineering ships, oil tankers, coast guard ships, floating docks, etc.

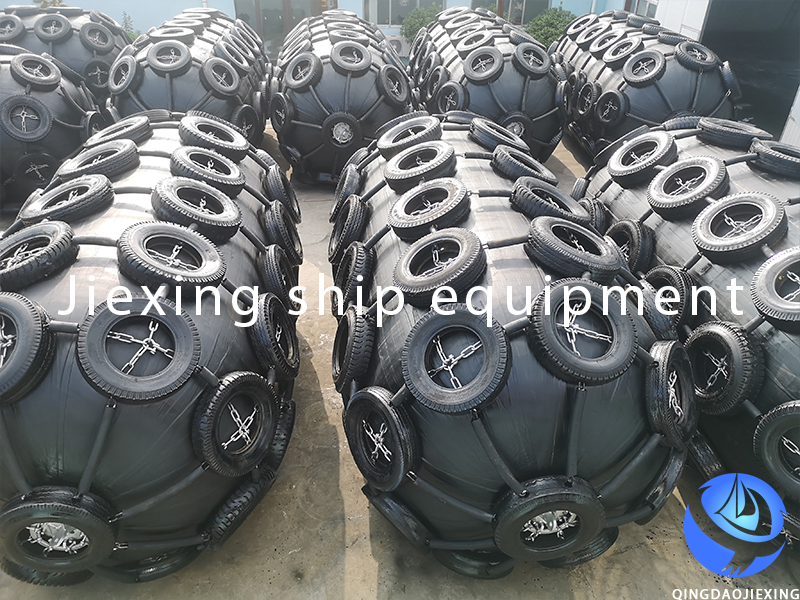

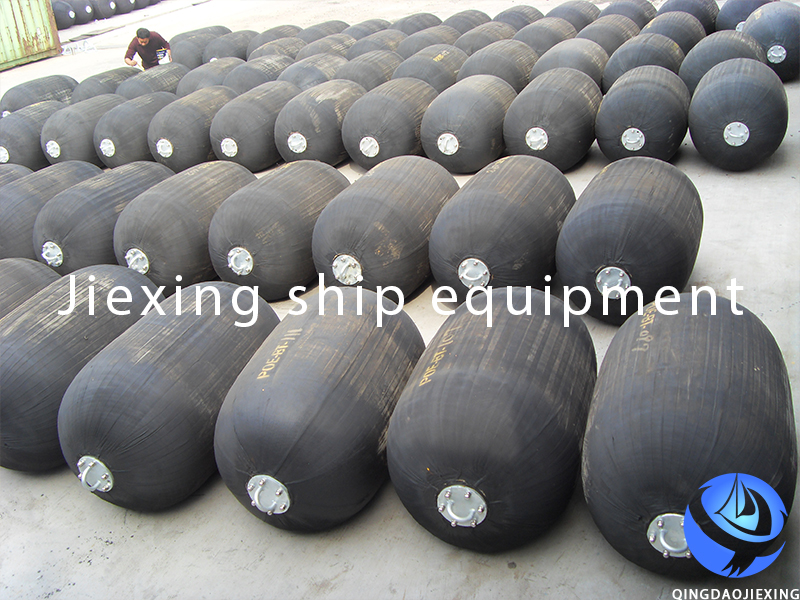

Yokohama fender case display
