SIZE |
Initial pressure is 80 kPa Compression deformation 60% |
||
Diameter(mm) |
Length (mm) |
Reactionforce-kn |
Energyabsorb kn-m |
500 |
1000 |
87 |
9 |
600 |
1000 |
100 |
10 |
700 |
1500 |
182 |
28 |
1000 |
1500 |
241 |
40 |
1000 |
2000 |
340 |
54 |
1200 |
2000 |
392 |
69 |
1350 |
2500 |
563 |
100 |
1500 |
3000 |
763 |
174 |
1700 |
3000 |
842 |
192 |
2000 |
3500 |
1152 |
334 |
2000 |
4000 |
1591 |
386 |
2500 |
4000 |
1817 |
700 |
2500 |
5500 |
2655 |
882 |
3000 |
5000 |
2715 |
1080 |
3000 |
6000 |
3107 |
1311 |
3300 |
4500 |
2478 |
1642 |
3300 |
6000 |
3654 |
2340 |
3300 |
6500 |
3963 |
2534 |
1. large energy absorption, small reaction force, so as to ensure that neither damage the hull nor damage the shore wall.
2. simple installation, portable, in any ship, any sea area is not affected by the tide and the size of the ship.
3. Good resilience, the product will not be deformed due to the force after the force is exerted. After the fender is squeezed, more than 95% of the product will be released immediately after the force.
4. good economic performance, pneumatic fender compared with the same period, Beierte fender economic performance is good, cost-effective, reliable quality. Qingdao Jiexing Fender has undergone inspection from raw material purchasing, product ordering, product production and product inspection to ensure its quality.

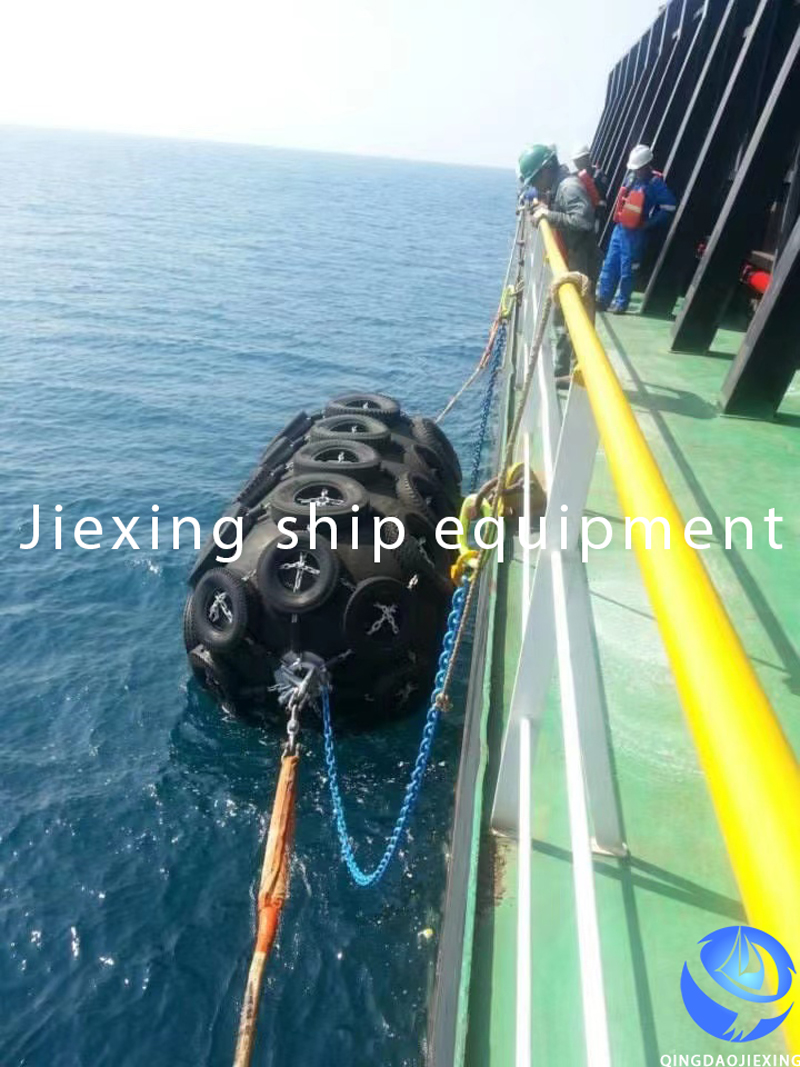

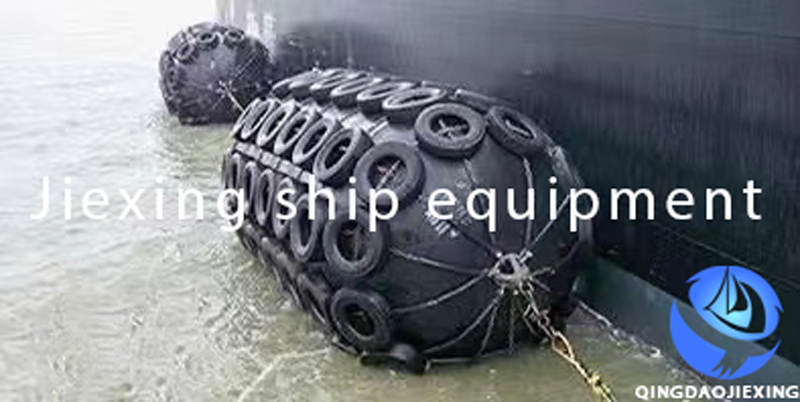

When the ship is docked, the inflatable rubber fender can exert its performance to achieve inclined contact and increase the safety factor. Inflatable rubber fender is widely used in wharf, dock, oil tanker, cargo ship, offshore platform, warship, military port wharf, buoy, sea handling cargo, sea pipeline plugging and so on. Products have been CCS, ABS, BV, DNV, GL, LR and other classification society quality inspection certification. Stable quality, perfect after-sales service, reasonable price, let every customer satisfaction.
